Hi there,

I am trying to extract a component using XFProj. I worked with that in the past.... it seems there is a bug on 7.4.2 as the below code works in v5 but not in v7.4.

<xfProject topFolderPath="XFProjMenu" defaultZipFileName="Menu.Zip">
	<projectItems>
		<projectItem projectItemType="DashboardComponent" folderPath="" name="cpTest" includeDescendants="true"/>
	</projectItems>
</xfProject>

The documentation does not mention anything about the workspaces.

Can you guys test on your side on provide a feedback?

Thanks

Metadata

Best answer by RobbSalzmann

Hi NicolasArgente ,
Here's a working 7.4.2 xfproj:

<xfProject topfolderPath="" defaultZipFileName="ABC123_PV7.4.2_SV100_PackageContents.zip">
	<projectItems>
		<!-- Dashboard items -->
		<projectItem projectItemType="DashboardWorkspace" folderPath="" workspace="XFW_321_Myco_Manager_ABC123" name="XFW_321_Myco_Manager_ABC123" includeDescendants="false"/>
		<projectItem projectItemType="DashboardMaintenanceUnit" workspace="XFW_321_Myco_Manager_ABC123" folderPath="" name="321 Myco Manager (ABC123)" includeDescendants="true" />
		<projectItem projectItemType="DashboardProfile" folderPath="" name="Myco Manager (ABC123)" includeDescendants="true"/>
		<!-- Cubes -->
		<projectItem projectItemType="Cube" folderPath="" name="MycoManager_ABC123" includeDependants="true" />
		<!-- Business Rules -->
		<projectItem projectItemType="BusinessRule" folderPath="" name="ABC123_HelperQueries" includeDependants="true" />
		<projectItem projectItemType="BusinessRule" folderPath="" name="ABC123_SolutionHelper" includeDependants="true" />
		<!-- Dimensions -->
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_Entity" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_Scenario" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_Account" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_Flow" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD1" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD2" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD3" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD4" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD5" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD6" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD7" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD8" includeDescendants="true" />
	</projectItems>
</xfProject>

N

NicolasArgenteAuthor

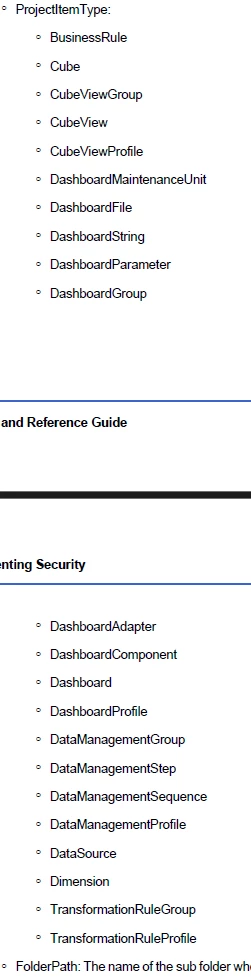

Source : Design and Reference guide

R

RobbSalzmannAnswer

Hi NicolasArgente ,
Here's a working 7.4.2 xfproj:

<xfProject topfolderPath="" defaultZipFileName="ABC123_PV7.4.2_SV100_PackageContents.zip">
	<projectItems>
		<!-- Dashboard items -->
		<projectItem projectItemType="DashboardWorkspace" folderPath="" workspace="XFW_321_Myco_Manager_ABC123" name="XFW_321_Myco_Manager_ABC123" includeDescendants="false"/>
		<projectItem projectItemType="DashboardMaintenanceUnit" workspace="XFW_321_Myco_Manager_ABC123" folderPath="" name="321 Myco Manager (ABC123)" includeDescendants="true" />
		<projectItem projectItemType="DashboardProfile" folderPath="" name="Myco Manager (ABC123)" includeDescendants="true"/>
		<!-- Cubes -->
		<projectItem projectItemType="Cube" folderPath="" name="MycoManager_ABC123" includeDependants="true" />
		<!-- Business Rules -->
		<projectItem projectItemType="BusinessRule" folderPath="" name="ABC123_HelperQueries" includeDependants="true" />
		<projectItem projectItemType="BusinessRule" folderPath="" name="ABC123_SolutionHelper" includeDependants="true" />
		<!-- Dimensions -->
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_Entity" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_Scenario" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_Account" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_Flow" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD1" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD2" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD3" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD4" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD5" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD6" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD7" includeDescendants="true" />
		<projectItem projectItemType="Dimension" folderPath="" name="321Mush_UD8" includeDescendants="true" />
	</projectItems>
</xfProject>

N

NicolasArgenteAuthor

Hi RobbSalzmann and thanks for find this out. I will give it a test and come back to you.

@Onestream : Guys, can you please update the documentation.

M

MarcusH

@OneStream : And please add TaskScheduler to the list of exportable objects
