Question

Genesis Cube View with Drill issue

  • September 4, 2025
  • 3 replies
  • 0 views

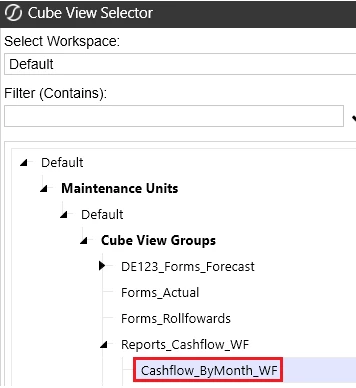

I've been working on getting up to speed with the various Genesis content blocks and am having trouble with the Cube View With Drill block. When I try to select a cube view, the tree view only goes down to the Cube View Group level, not the Cube View level. I was able to tweak a business rule to allow it to select a specific cube view, but then the drill doesn't appear to work when I select a cell to see the details. I'm certain there is data that can be drilled down to, but nothing changes when I click various cells. I've even tried setting the cube view to show a base-level intersection and confirmed that I can see a number that is the same in stage. Anyone seen this issue yet or have any troubleshooting tips?



3 replies

J
JohnGoodwin
September 4, 2025

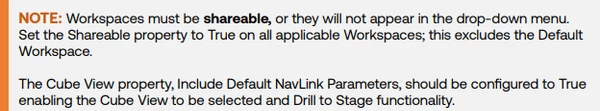

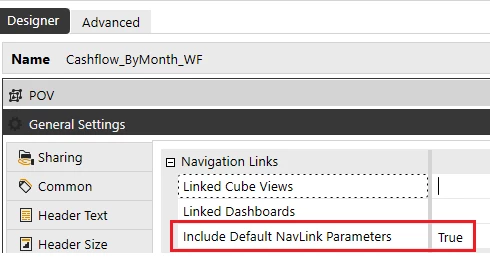

Did you enable NavLink parameters in the cube view? The cube views will not be displayed in the tree view until that is enabled.



B
BHMAuthor
September 8, 2025

Thanks John, I overlooked that part of the documentation! I can see the cube views now. However, still seeing an issue with the drill itself. I've been testing in the GolfStream app. I tested loading a file through stage to make sure there were results but no matter what cell I click, not seeing any drill results. I've tested on my cube view using only base-level data and confirmed that I can actually drill back to the source, so wondering if there's something else I might be missing?

Thanks!





C
cons1
February 13, 2026

Hi All.
I got the same issue. All settings were made accordingly.

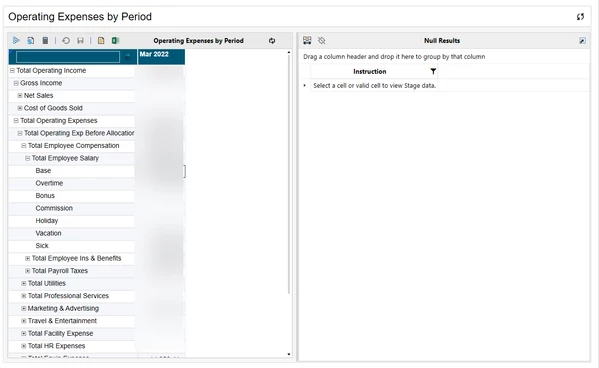

It is still giving Null results in the drill, similar to BHM​ 's image.

JohnGoodwin​ May I know if there is an update on this? Thank you

J
JohnGoodwin
February 16, 2026

Do you get an error in log when drilling to stage?
Something similar to "An item with the same key has already been added."



C
cons1
February 25, 2026

I am getting a blank or null result in the drill pane.

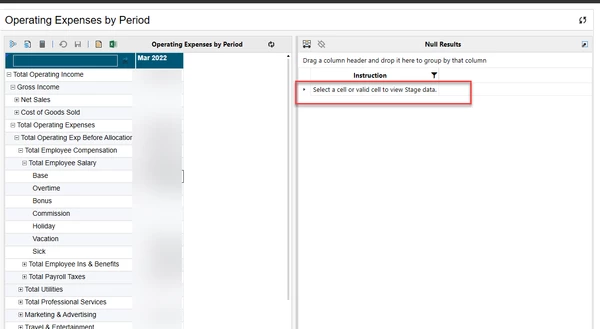

I select a cell with an imported amount, and expect the other pane to show the Stage Data. Similar to the image below, I get a blank even if there is data.
