Left Justify Description and Right Justify Name in a Cubeview

There are no justify options available in formatting row or column headers in Cube Views, that I am aware of.  It would be nice if you could center as well.

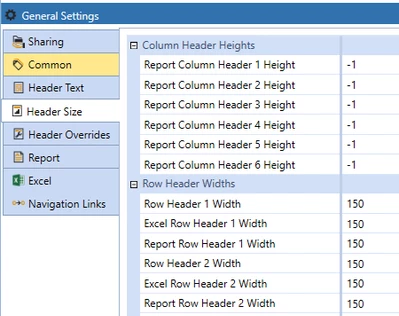

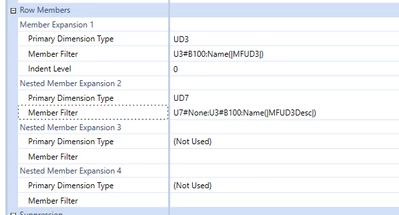

Following the screen shots below will get you close.  You would have to play with some formatting to get the Nested Member Expansion 2 (i.e., the Description) to be right justified.

Here's a way:

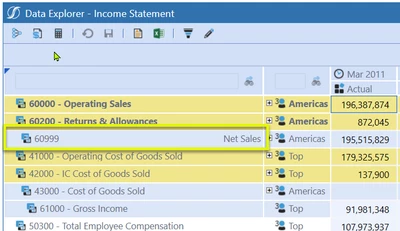

in the member filter property of the row, call an XFBR in the Name function that will format your member they way you want it., add leading spaces, proportionally add padding between description and name, anything you want.

The part before the colon will not appear in the row header, but WILL drive the values in the data cells for that row.  This means you can create any row header you want in the XFBR.

a#60999:Name(XFBR(RightLeftJustify, Justify, HeaderCellWidth=80,headerCellText=60999 - Net Sales,DimName=Account))

VB.net

Public Class MainClass
    Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As DashboardStringFunctionArgs) As Object
        Try
            Return Justify(si, args)
        Catch ex As Exception
            Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
        End Try
    End Function

    Private Function Justify(ByVal si As SessionInfo, ByVal args As DashboardStringFunctionArgs) As String
        Dim output As String = String.Empty

        Try
            Dim dimName As String = args.NameValuePairs.XFGetValue("DimName", String.Empty)
            Dim headerCellText As String = args.NameValuePairs.XFGetValue("headerCellText", String.Empty)
            Dim headerCellWidth As Integer = Convert.ToInt32(args.NameValuePairs.XFGetValue("HeaderCellWidth", String.Empty))
            Dim parts As String() = headerCellText.Split("-"c)
            Dim firstPart As String = parts(0).Trim()
            Dim secondPart As String = parts(1).Trim()
            Dim spacesCount As Integer = headerCellWidth - firstPart.Length - secondPart.Length
            Dim spaces As String = New String(" "c, spacesCount)
            output = firstPart & spaces & secondPart
        Catch ex As Exception
            Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
        End Try

        Return output
    End Function
End Class

C#:

public class MainClass
{
	public object Main(SessionInfo si, BRGlobals globals, object api, DashboardStringFunctionArgs args)
	{
		try
		{
			return Justify(si, args);
		}
		catch (Exception ex)
		{
			throw ErrorHandler.LogWrite(si, new XFException(si, ex));
		}
	}

	private string Justify(SessionInfo si, DashboardStringFunctionArgs args)
	{
		string output = string.Empty;
		try
		{
			string dimName = args.NameValuePairs.XFGetValue("DimName", string.Empty);
			string headerCellText = args.NameValuePairs.XFGetValue("headerCellText", string.Empty);
			int headerCellWidth = Convert.ToInt32(args.NameValuePairs.XFGetValue("HeaderCellWidth", string.Empty));
			string[] parts = headerCellText.Split('-');
			string firstPart = parts[0].Trim();
			string secondPart = parts[1].Trim();
			int spacesCount = headerCellWidth - firstPart.Length - secondPart.Length;
			string spaces = new string(' ', spacesCount);
			output = firstPart + spaces + secondPart;
		}
		catch(Exception ex)
		{
			throw ErrorHandler.LogWrite(si, new XFException(si, ex));
		}
		return output;
	}
}
