Narrative Reporting - Insert Content (using Artifacts option)

  • August 14, 2024
  • 6 replies
  • 6 views

Hi

I'm currently reviewing the functionality of the Narrative Reporting and need some guidance with it.

Per the option to insert content within a document, I have managed to get a Cube View to be active within the doc but cannot get a report component to generate?  I also managed to get the XFCell reference to work.

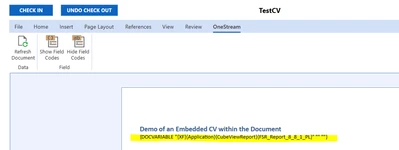

The following is what I have used for a CV generation, which works fine:

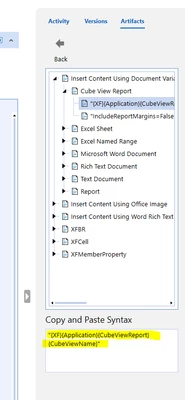

However, the actual syntax provided does not match what actually needs to be applied for it to work in the doc (i.e. see below provided syntax):



Is there a list of what full syntax should be used for each of the categories listed in the Insert Content option?

I've tried to use the same as the CV generation for a Report Component but that doesn't appear to work (as follows):

{DOCVARIABLE "{XF}{Application}{Report}{rpt_FSR_BS_8_8_1}" "" ""}



Any help with this would be much appreciated?



Thanks

6 replies

August 20, 2024

I am in the same boat, hope someone knows.

August 23, 2024

Am having the same issue.

Have to say it seems ridiculously over-complicated at first glance. Was expecting an option where you could just select your cube view from the usual list - not have to enter some code and then try to work out why its not working.




September 16, 2024

Hello, how were you able to add the "Artifact" option? - I can only see Activity and Versions.

September 17, 2024

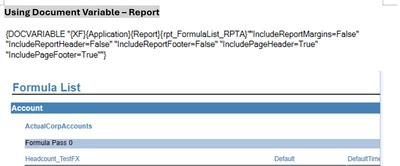

Example: to display Report syntax





September 17, 2024

Hello, this syntax is not working on my side. Not sure if any one else is also experiencing this issue.







September 17, 2024

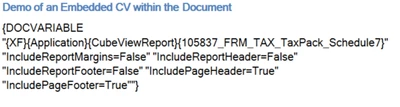

this is the syntax for cubeview reports





September 17, 2024

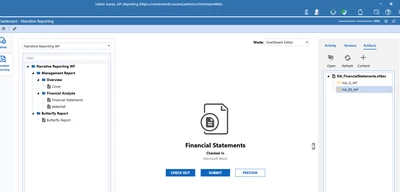

Hi, documentation is really weird, narrative reporting works just as extensible document. Create it, create the line in narrative reporting and then upload the document (even if the icon has the arrow down) and after preview, check in, you would be able to see the artifacts.





September 17, 2024

Hello, how did you get your artifacts to display the cube views?

September 17, 2024

Well, it appeared after i did the checkin

September 27, 2024

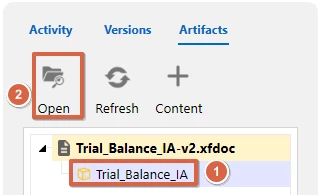

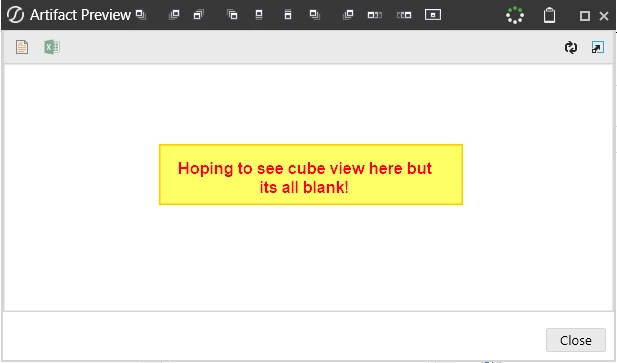

Has anyone managed to drill down into the cube view from the Artifacts tab? I attempted it, and while a window opens, it's completely blank. I was expecting to drill down, but nothing is displayed. Has anyone else had any success with this?
