November 17, 2023

Report (PDF) Header Background Fill Color Not Extending to Bottom of the Space

  • November 17, 2023
  • 2 replies
  • 1 view

The background fill color on the header is not filling the entire space when viewed in PDF. You can see on four of the six columns there is white space where the text is shorter. I need the teal color to fill to the bottom of the header space, and not just exist where the text is located. It works fine in excel and cube view. The issue only exists in report PDFs. Does anyone know of a way to accomplish this?

Report/PDF:



Excel:



Cube View:



Here's an example of a PDF that looks good because the length of the header text is more comparable across the columns:





I'm sure there's a way to accomplish this through a Custom Report Formatting rule or formula. I'm trying to avoid this, as I feel the formatting should already default to what I want. But, if I have to go this route, I will.

Thanks in advance!

2 replies

J
JackLacava
November 21, 2023

Have you tried talking to Support about it? It looks like a little bug to me.

M
mteichAuthor
November 21, 2023

I hadn't, but I did just open one today. Thanks

A
anders
January 22, 2024

Any luck getting an answer from OS on this topic?

S
Sum0
June 17, 2025

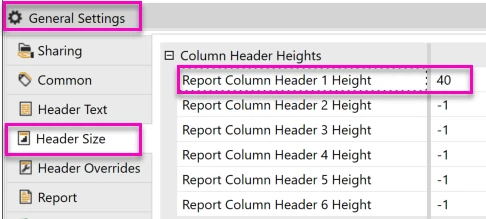

This fix worked for me. Go into the Cube View General Settings > Header Size and change the Report Column Header 1 Height from -1 (default) to 40 for any of the Header Rows where the text is wrapping (this is 2 rows of wrapped text, allow 20 for each row). In this example, only the top row was wrapping, so I left the Column 2 Header Height at the default. This resulted in a consistent background fill for the whole header.
