Disable a button on a dashboard when the form status is 'Completed'

Question

Hi all,I am trying to build a business rule to dynamically disable a button (become invisible) once the form status is completed. May I know is there any function I could leverage on to fulfill this functionality?Any suggestion would be appreciated. Thank you.Best,Jacky

EdwinS · Accepted Answer

Hi Edwin,

Thank you for providing the code and example, this is working as expected on my side as well. I just an additional question on whether this functionality could be leverage on sub-workflow forms as well?

For example, in the Input form step, we have multiple forms required to be completed, can the same function applied to each workflow forms?

Again, really appreciate your support on providing the solution on my initial inquiry.

Thank you.

Hi Jacky,

We can tweak the function to check for each form.

To do this you need to create a dictionary that stores the form name and the form status. Declare this as a private member of the class, where you declare global variables and then create a method in the class that will populate this variable with data. Please refer to the code below.

Private formStatusDict As New Dictionary(Of String, XFFormStatus)

' Function to create the dictionary of form names and statuses
		Private Sub PopulateFormStatusDictionary()
		    ' Retrieve the workflow name, scenario, and time key
		    Dim wfName As String = args.NameValuePairs("WFName") ' Hard-code if only checking one form
		    Dim wfScenario As String = ScenarioDimHelper.GetNameFromID(si, si.WorkflowClusterPk.ScenarioKey)
		    Dim wfTime As String = TimeDimHelper.GetNameFromId(si.WorkflowClusterPk.TimeKey)
		    Dim wfClusterPk As WorkflowUnitClusterPk = BRApi.Workflow.General.GetWorkflowUnitClusterPk(si, wfName, wfScenario, wfTime)

		    ' Get the required forms and populate the dictionary
		    Dim formsList As List(Of XFFormSummaryInfo) = BRApi.Forms.Metadata.GetForms(si, wfClusterPk).RequiredForms
		    formStatusDict.Clear() ' Clear the dictionary to avoid duplicates

		    For Each form In formsList
		        ' Add each form name as key and its status as value
		        formStatusDict(form.Name) = form.Status
		    Next
		End Sub

From your form status parameter, you need to add form name and enter the name of the form in square brackets (you will need a parameter for each form in the workflow), your parameter literal value will look like this

XFBR(Your_XFBR_Rule,GetFormStatus,WFName=|WFProfile|, FormName=[Test Form Name])

Now this will run the GetFormStatus function after populating the forms dictionary, the code will change as below:

If args.FunctionName.XFEqualsIgnoreCase("GetFormStatus")
					Dim formName As String = args.NameValuePairs.XFGetValue("FormName")
					Me.PopulateFormStatusDictionary()
					Return Me.GetFormStatus(formName)
				End If

' Function to check if a specific form is completed
		Private Function GetFormStatus(formName As String) As String
		    ' Ensure the dictionary has been populated
		    If Not formStatusDict.ContainsKey(formName) Then
		        Throw New System.Exception($"Form '{formName}' not found or dictionary not populated.")
		    End If

			Dim status As XFFormStatus = Me.formStatusDict(formName)

		    If status.Completed Then
				Return "Completed"
			Else
				Return "Not Completed"
			End If

		End Function

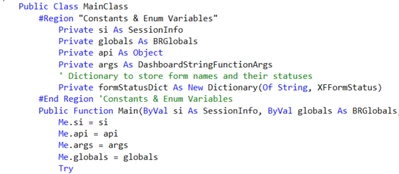

At the top add the below global variables and initialize them in the main function

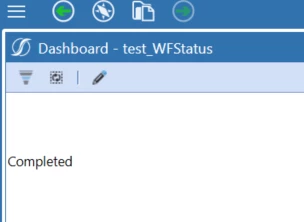

When you run this you should be able to get the same outcome but now at a form level.

EdwinS · Answer

Hi,

In the button you can use the XFBR rule to indicate whether to show or hide the button.
1. In button properties --> Formatting --> Display Format
Assign IsVisible property to the XFBR rule

IsVisible = XFBR(Your_XFBR_Rule, YourFunctionName, FormCompleted=|!ParameterStoringFormStatus!|

2. In the XFBR rule, you can have a method that checks the form status and return whether the button should be shown or hidden, refer to the code snippet below.

'In the main function add the condition passed in the button
If args.FunctionName.XFEqualsIgnoreCase("YourFunctionName") Then
     Return Me.YourFunctionName(si, globals, api, args)
End If

'Create a method that will get the form status and return the result
'The method is YourFunctionName
        Public Function YourFunctionName(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As DashboardStringFunctionArgs) As String
            Try
                'Get form status to test
                Dim formComplete As String = args.NameValuePairs.XFGetValue("FormCompleted")

                'Check to see if the form is completed (Can be used to hide objects if the form is completed)
                If formComplete.XFEqualsIgnoreCase("Completed") Then
                    'Form is completed, Return False
                    Return "False"
                Else
                    'Form is not completed, Return True
                    Return "True"
                End If

            Catch ex As Exception
                Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
            End Try
        End Function
