Extract Active Entity list from OneStream by using Data Management Job

  • January 6, 2022
  • 5 replies
  • 0 views

Hi all, Happy New Year! Is there a way of extracting an active entity list from OneStream including Entity Name, Description, and Currency fields by using a data management job? Any ideas will be appreciated. Thank you!

Best answer by Sai_Maganti

I see why you want to use a DM. Here is some basic BR which gets the list of entities from member info and writes a csv file to the system. You may modify to suit your requirements.

Namespace OneStream.BusinessRule.Extender.ExportEntitiesMetaData
	Public Class MainClass
		Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As ExtenderArgs) As Object
			Try
				Select Case args.FunctionType
					Case Is = ExtenderFunctionType.Unknown, ExtenderFunctionType.ExecuteDataMgmtBusinessRuleStep

					Dim configSettings As AppServerConfigSettings = AppServerConfig.GetSettings(si)
					Dim folderPath As String = FileShareFolderHelper.GetDataManagementExportUsernameFolderForApp(si, True, configSettings.FileShareRootFolder, si.AppToken.AppName) & "\MetaData"
					If Not Directory.Exists(folderPath) Then Directory.CreateDirectory(folderPath)
					Dim filePath As String = folderPath & "\EntityList.csv"
					If File.Exists(filePath) Then File.Delete(filePath)

					Using dbConnFW As DbConnInfo = BRAPi.Database.CreateFrameworkDbConnInfo(si)
						Using dbConnApp As DbConnInfo = BRAPi.Database.CreateApplicationDbConnInfo(si)
							'Get the Members using member script
							Dim mf As String = "E#YourEntityTop.Base"
							'Set up entity dimension
							Dim objDim As OneStream.Shared.Wcf.Dim = DimsWcf.GetDimUsingName(dbConnFW, dbConnApp, "Entities")
							Dim members As List(Of MemberInfo) = MetadataWcf.GetMembersUsingFilter(dbConnFW, dbConnApp, Nothing, si.WorkflowClusterPk, si.PovDataCellPk, objDim.DimPk, mf, 0, Nothing, Nothing, True, False, True)

							Dim sb As New StringBuilder
							sb.AppendLine("Name,Description,Currency")
							For Each memInfo As MemberInfo In members
								sb.AppendLine(memInfo.Member.Name & "," & memInfo.Member.Description.Replace(",", "_") & "," & BRApi.Finance.Entity.GetLocalCurrency(si, memInfo.Member.MemberId).Name)
							Next
							' Write the output string to a file
							Dim sw As New StreamWriter(filePath)
							sw.Write(sb)
							sw.Close()
						End Using
					End Using
				End Select

				Return Nothing
			Catch ex As Exception
				Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
			End Try
		End Function
	End Class
End Namespace

5 replies

January 6, 2022

In which format are you expecting to see the list? Also, any reservations about metadata export? You can simply export the whole dimension.

January 6, 2022

Bottom line, yes, it is possible. But there are many ways to skin a cat depending on other factors.

Shetal_PAuthor
January 6, 2022

Thanks for your feedback. Can you please throw some ideas here and see if that works with our requirements and current application setup?

January 6, 2022

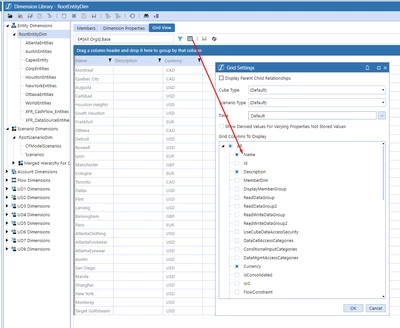

Not sure why you want to do from DM job but using the Grid view from the Dimension is easiest and then right click on the results table and export. Data Management as it suggests is ideal for data jobs and not for Metadata exports though it could be possible.


January 7, 2022

Sai, we want this to be lights out - scheduled so that we can send to other applications in our organization.  I don't want to manually perform this step every month.  The task scheduler is limited in OneStream, thus the reason for asking it to be a data management job.  Preferably a delimited file like a CSV but other formats would work.

January 7, 2022

I see why you want to use a DM. Here is some basic BR which gets the list of entities from member info and writes a csv file to the system. You may modify to suit your requirements.

Namespace OneStream.BusinessRule.Extender.ExportEntitiesMetaData
	Public Class MainClass
		Public Function Main(ByVal si As SessionInfo, ByVal globals As BRGlobals, ByVal api As Object, ByVal args As ExtenderArgs) As Object
			Try
				Select Case args.FunctionType
					Case Is = ExtenderFunctionType.Unknown, ExtenderFunctionType.ExecuteDataMgmtBusinessRuleStep

					Dim configSettings As AppServerConfigSettings = AppServerConfig.GetSettings(si)
					Dim folderPath As String = FileShareFolderHelper.GetDataManagementExportUsernameFolderForApp(si, True, configSettings.FileShareRootFolder, si.AppToken.AppName) & "\MetaData"
					If Not Directory.Exists(folderPath) Then Directory.CreateDirectory(folderPath)
					Dim filePath As String = folderPath & "\EntityList.csv"
					If File.Exists(filePath) Then File.Delete(filePath)

					Using dbConnFW As DbConnInfo = BRAPi.Database.CreateFrameworkDbConnInfo(si)
						Using dbConnApp As DbConnInfo = BRAPi.Database.CreateApplicationDbConnInfo(si)
							'Get the Members using member script
							Dim mf As String = "E#YourEntityTop.Base"
							'Set up entity dimension
							Dim objDim As OneStream.Shared.Wcf.Dim = DimsWcf.GetDimUsingName(dbConnFW, dbConnApp, "Entities")
							Dim members As List(Of MemberInfo) = MetadataWcf.GetMembersUsingFilter(dbConnFW, dbConnApp, Nothing, si.WorkflowClusterPk, si.PovDataCellPk, objDim.DimPk, mf, 0, Nothing, Nothing, True, False, True)

							Dim sb As New StringBuilder
							sb.AppendLine("Name,Description,Currency")
							For Each memInfo As MemberInfo In members
								sb.AppendLine(memInfo.Member.Name & "," & memInfo.Member.Description.Replace(",", "_") & "," & BRApi.Finance.Entity.GetLocalCurrency(si, memInfo.Member.MemberId).Name)
							Next
							' Write the output string to a file
							Dim sw As New StreamWriter(filePath)
							sw.Write(sb)
							sw.Close()
						End Using
					End Using
				End Select

				Return Nothing
			Catch ex As Exception
				Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
			End Try
		End Function
	End Class
End Namespace
January 6, 2022

.. and then right click on the results table and export

January 6, 2022

Sucks that the system doesn't let you to edit the original post, does it? 🙂

January 6, 2022

Actually there is (clicking on the down arrow) but only found after posting the last one 🙂

February 9, 2023

If trying to pull ParentMember and ParentDescription, using this code I'm not seeing that as an option under memInfo.Member. Does anyone here have any suggestions on how to pull these?
