WorkFlow's Hierarchy Level Details in Business Rule

  • April 10, 2024
  • 2 replies
  • 0 views

Can anyone share brapi command to fetch the Workflow's Hierarchy Level in the Business Rule?





Best answer by JackLacava

Not sure what that is, is it BRApi.Workflow.Metadata.GetProfile(si, "Your profile name").Level , by any chance...?

2 replies

April 11, 2024

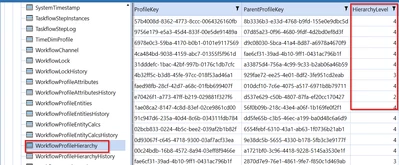

I don't think there is a BRApi object for managing/viewing the Workflow properties. The MarketPlace app XFW Reporting Compliance (RPTA) queries the workflow set up but uses a direct SQL call. Here is an example:



        Public Function WfProfile_DescAdjChild(ByVal si As SessionInfo, ByVal strProfileKey As String) As DataTable
            Try

                'Define the SQL Statement
                Dim sql As New Text.StringBuilder

                sql.Append("SELECT ")
                sql.Append("ProfileKey,  ")
                sql.Append("ProfileName As Name,  ")
                sql.Append("ProfileType ")
                sql.Append("FROM  ")
                sql.Append("WorkflowProfileHierarchy ")
                sql.Append("Where  ")
                sql.Append("ProfileType = 51 ")
                sql.Append("And ProfileKey In (" & strProfileKey & ") ")
                sql.Append("ORDER BY  ")
                sql.Append("HierarchyIndex ")

                'Execute the query
                Using dbConnApp As DbConnInfo = BRApi.Database.CreateApplicationDbConnInfo(si)
                    Dim dt As DataTable = BRApi.Database.ExecuteSql(dbConnApp, sql.ToString, False)
                    dt.TableName = "WorkflowProfiles"
                    Return dt

                End Using

                Return Nothing
            Catch ex As Exception
                Throw ErrorHandler.LogWrite(si, New XFException(si, ex))
            End Try
        End Function



vigneshAuthor
April 11, 2024

Thanks Marcus, I was able to use SQL and get it, but checking if there is any inbuilt command to grab it.

April 11, 2024

vignesh  - I tried yesterday could not find. If I find anything will post here.

April 11, 2024

Not sure what that is, is it BRApi.Workflow.Metadata.GetProfile(si, "Your profile name").Level , by any chance...?

April 11, 2024

Yes, it works. Thank you JackLacava





Dim a As Integer = BRApi.Workflow.Metadata.GetProfile(si,"GL Data load COPR STD.Import").Level
brapi.ErrorLog.LogMessage(si,A & "Value")
